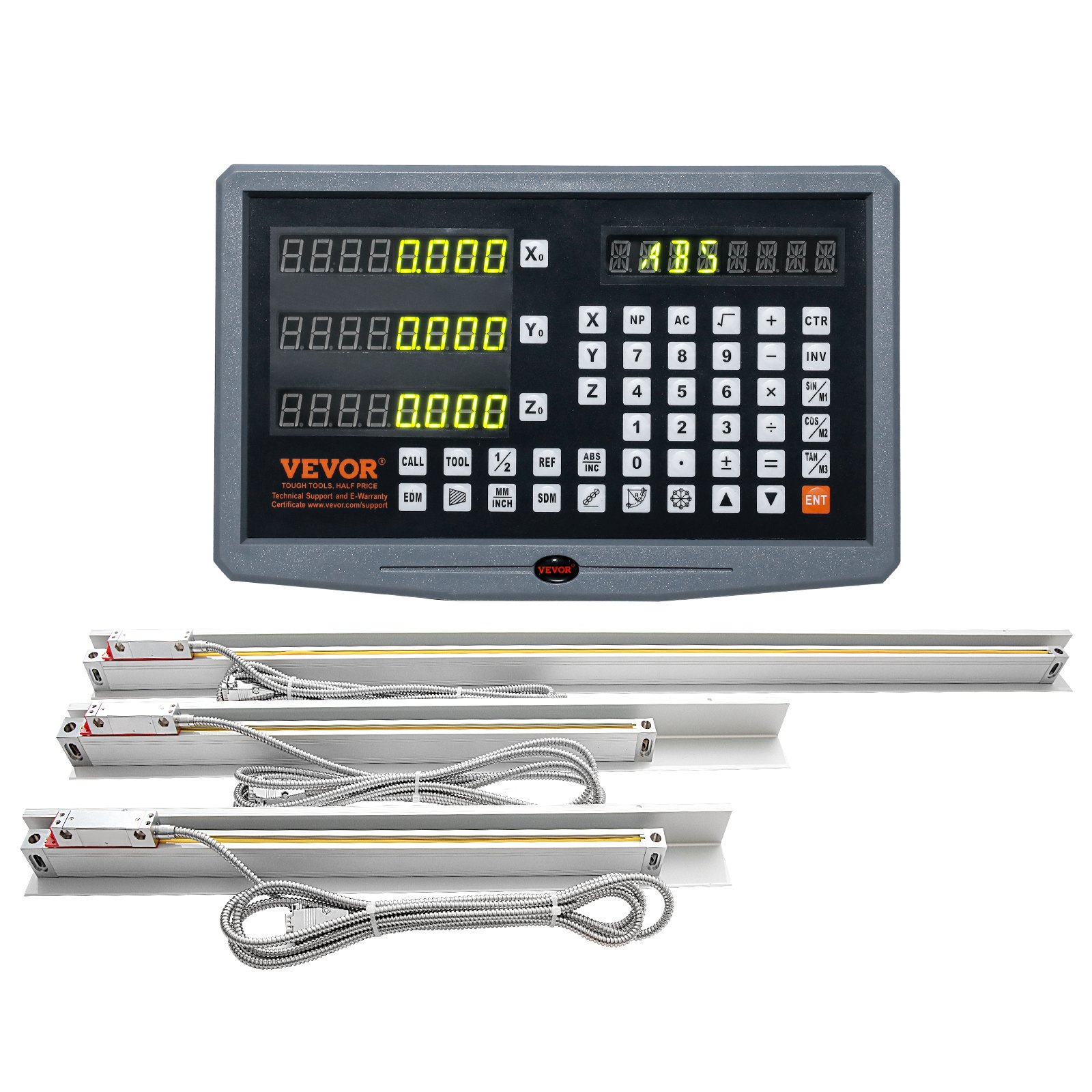

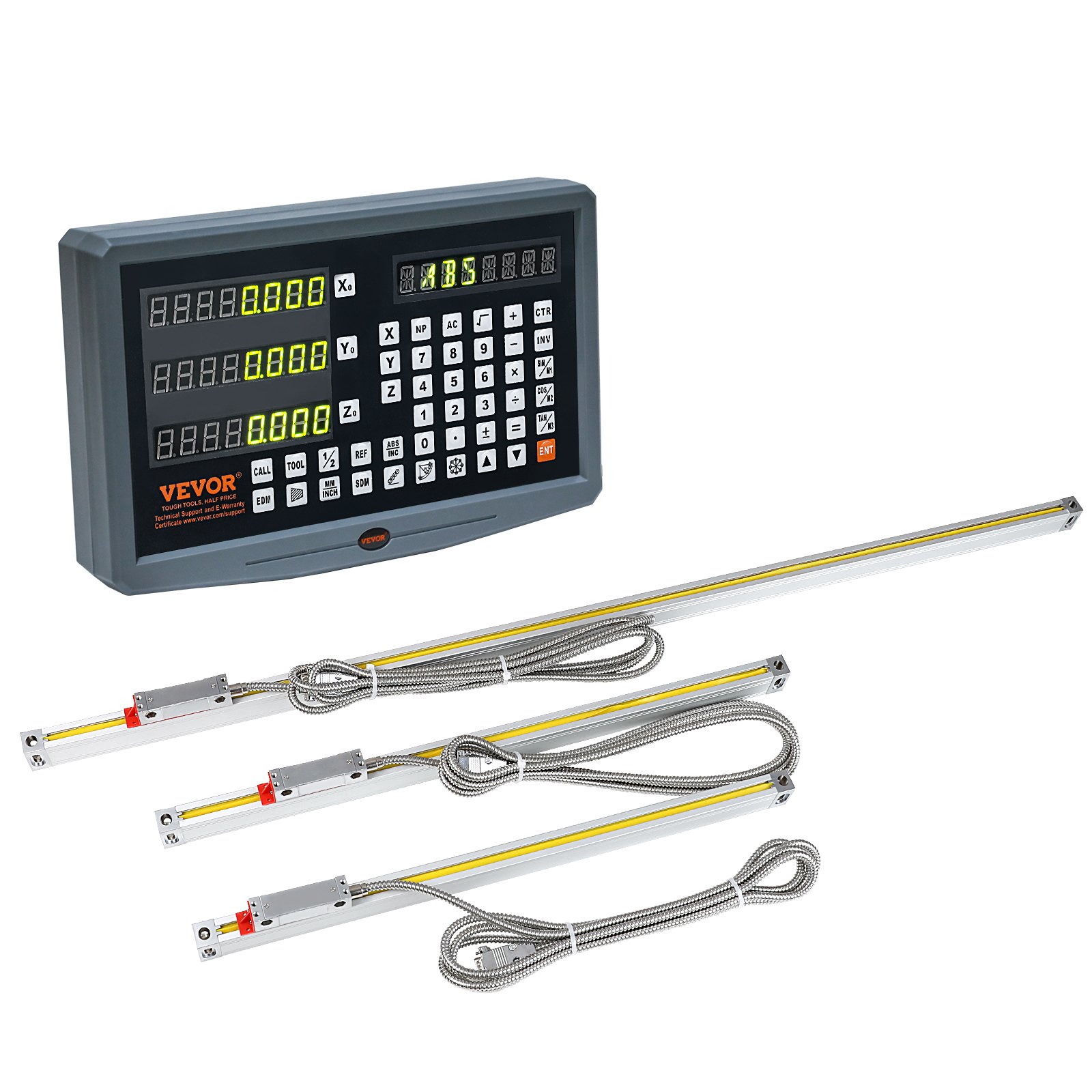

VEVOR Digitalanzeige 400/450/950mm Linearskala 3-Achsen-DRO-Display-Kit

Preis inklusive MwSt.Details ansehen
Sparen Sie bis zu 15 % mit dem PRO-Preis. Melden Sie sich für ein kostenloses PRO-Konto an.

Über diesen Artikel

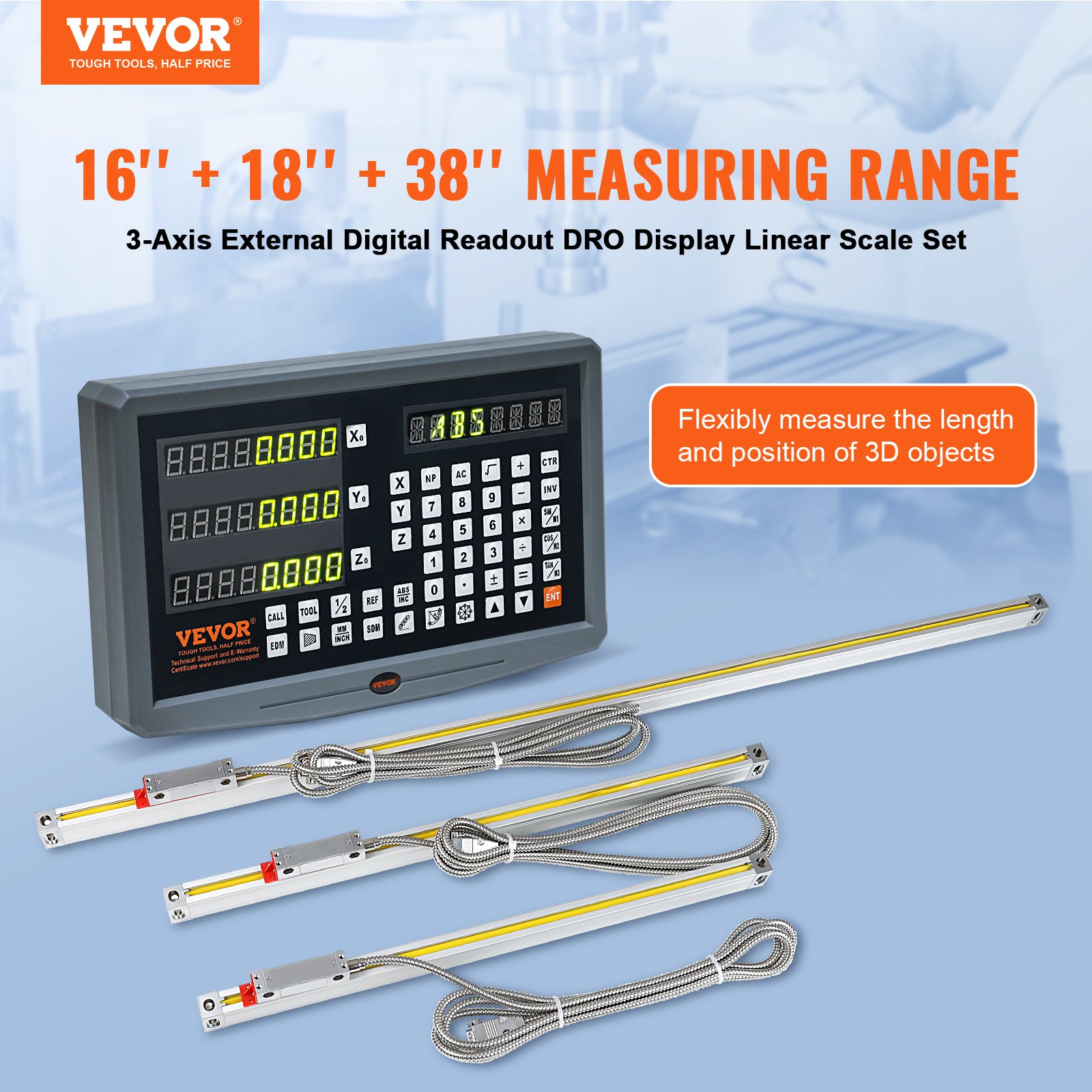

  • 16 Zoll / 400 mm, 18 Zoll / 450 mm, 38 Zoll / 950 mm Verfahrlänge: Erleben Sie Vielseitigkeit mit unserem 3-achsigen Linearmaßstab-Set, das drei Verfahrlängen bietet: 16 Zoll/400 mm, 18 Zoll/450 mm und 38 Zoll/950 mm. Passen Sie die X-Achse (Länge), Y-Achse (Höhe) und Z-Achse (Breite) an Ihre spezifischen Anforderungen an und ermöglichen Sie nahtlose Messungen dreidimensionaler Werkstücke wie Holz, Stein und Metall. Erleichtert hochpräzise Prozesse wie Umfangsbohrungen.

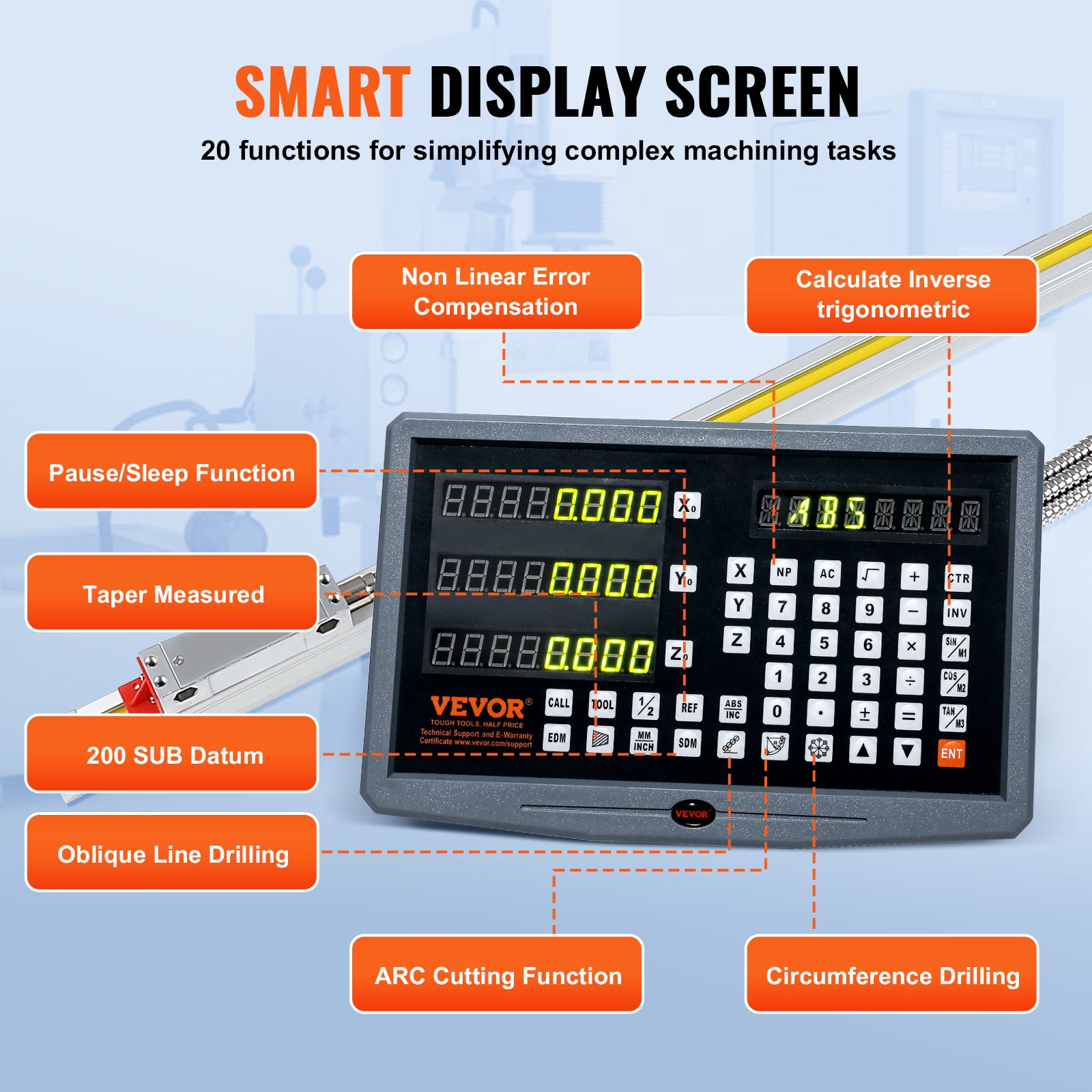

  • Multifunktionales, kristallklares Display: Unser Display bietet viele grundlegende und spezielle Funktionen, um bequemes Messen und Positionieren zu gewährleisten. Die grundlegenden Funktionen umfassen Standarddatenmessung, Berechnung, Nullstellung, Einheitenumrechnung, Pausenruhe, Ausschaltspeicher, nicht lineare Fehlerkompensation und mehr. Zu den speziellen Funktionen gehören ARC-Schneidfunktion, Umfangsbohrung, Schräglinienbohrung und Berechnung der inversen trigonometrischen Funktion.

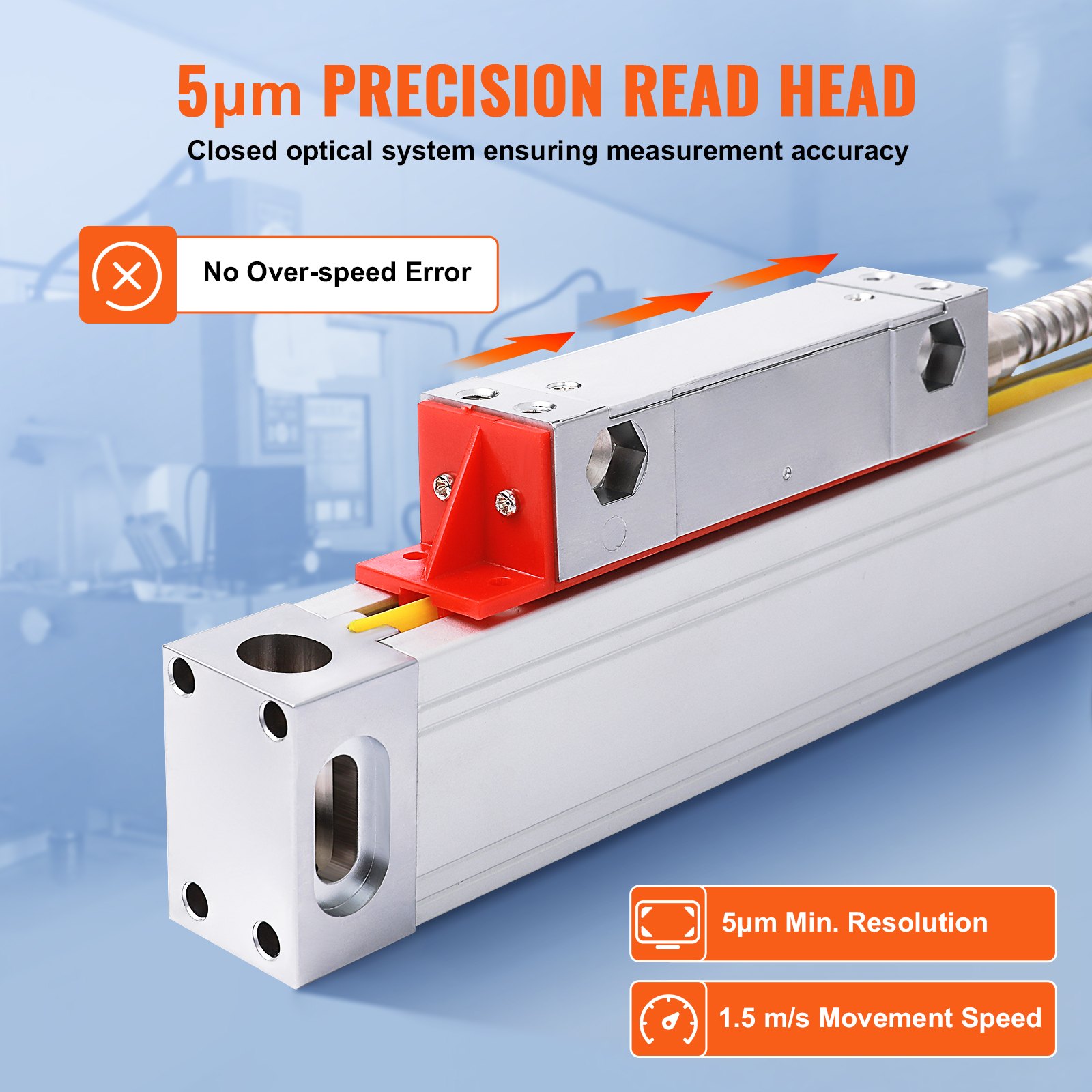

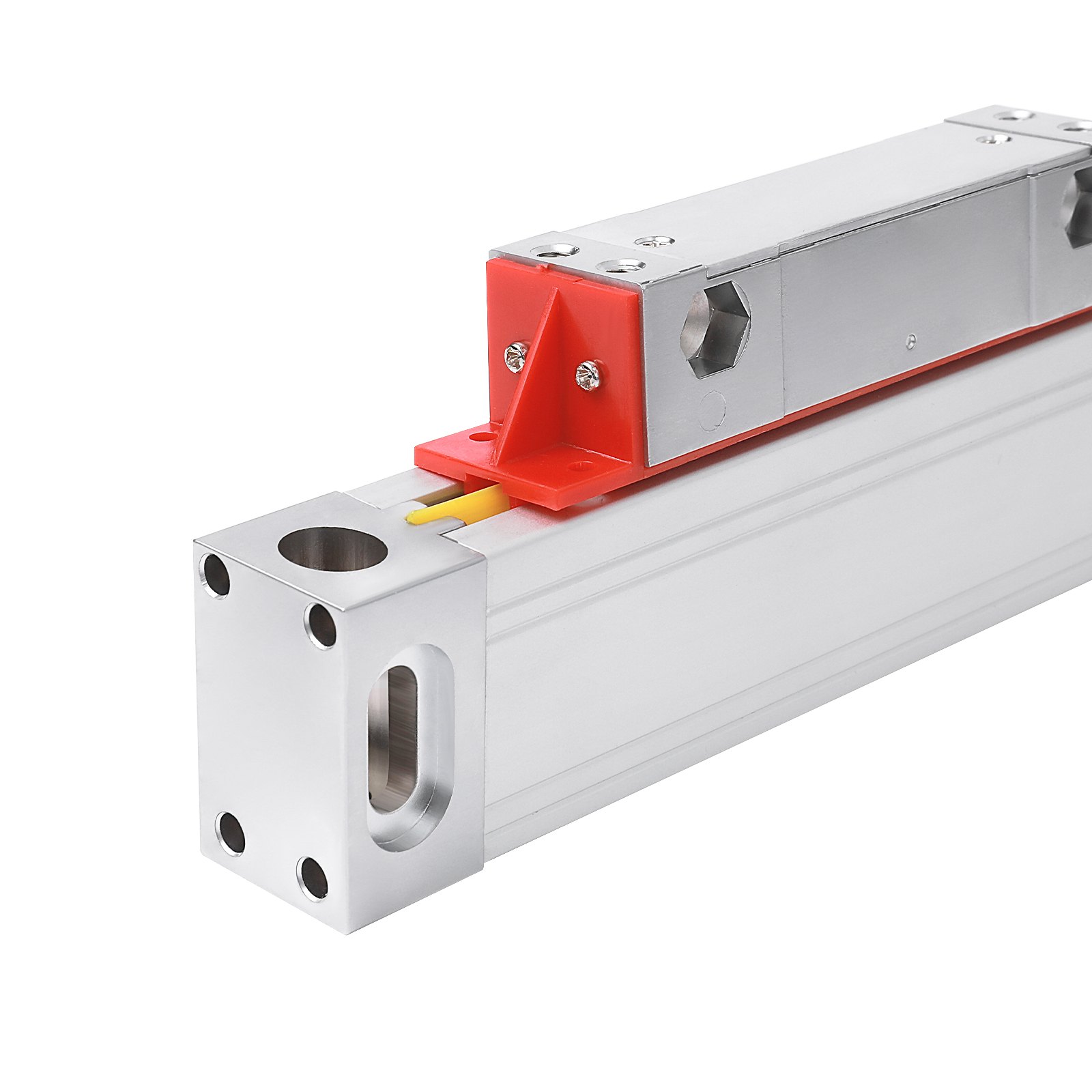

  • Präziser 5-μm-Lesekopf: Unsere lineare Skala bietet eine bemerkenswerte Mindestauflösung von 5 μm. Selbst bei der größten Reichweite von 38 Zoll / 950 mm weist sie bei Standard- und Wiederholungsmessungen einen Fehler von nur 0,004 Zoll / 0,1 mm auf. Mit einer schnellen Lesekopf-Bewegungsgeschwindigkeit von 1,5 m/s lässt sie keinen Raum für Überdrehzahlfehler. Präzision neu definiert, wo jeder Mikrometer zählt.

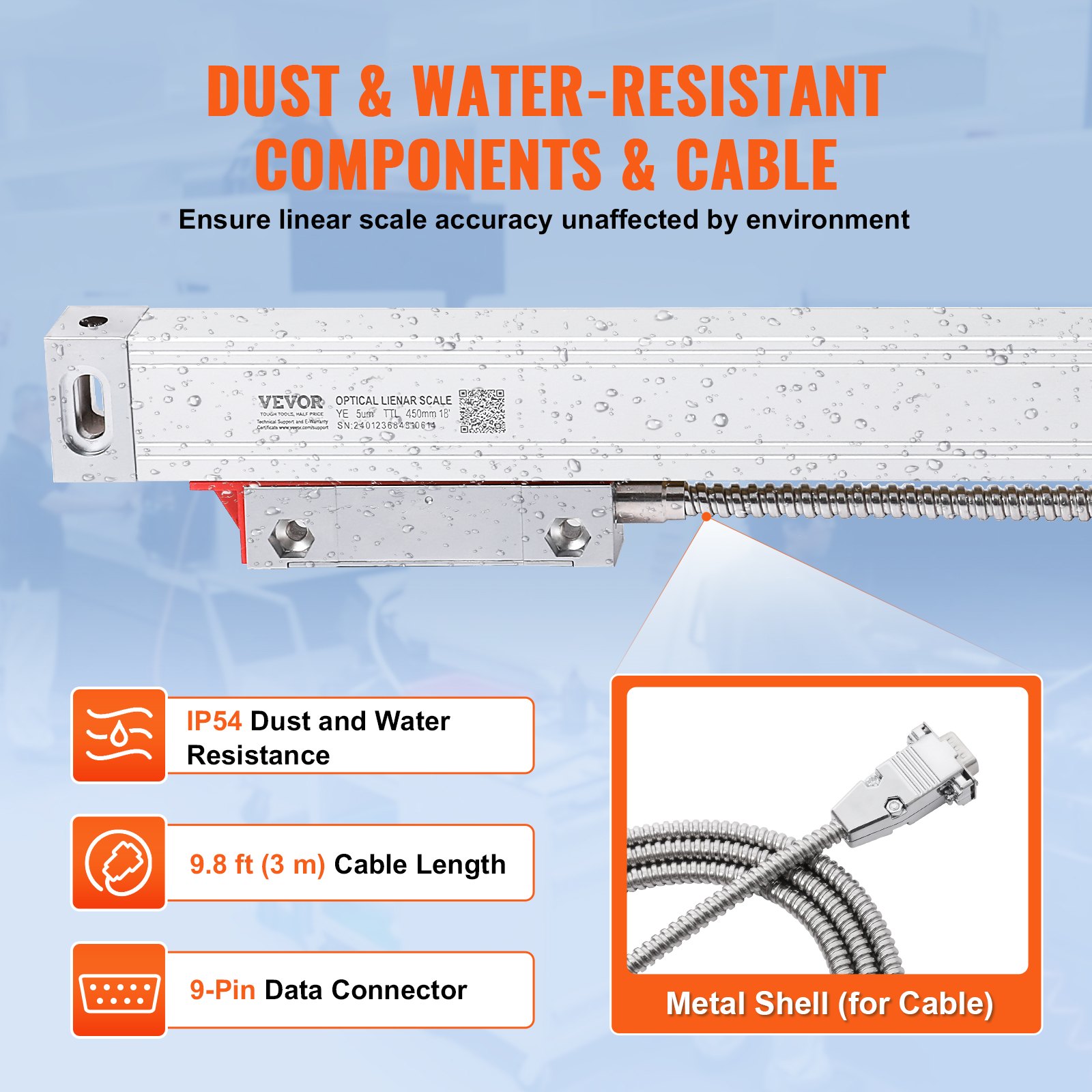

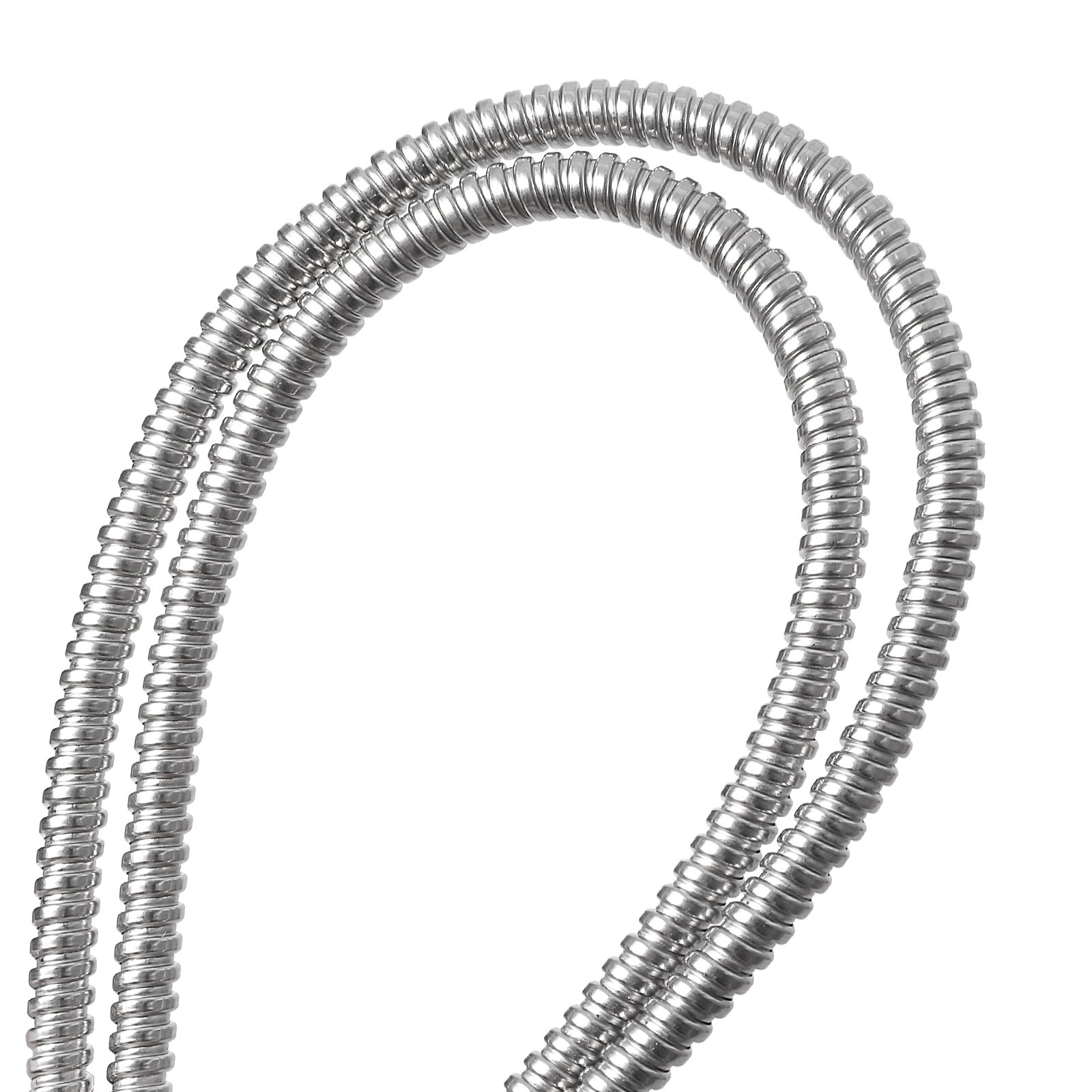

  • Schutz vor Schmutz und Flüssigkeiten: Mit einer zweischichtigen Schmierdichtung und einem verstärkten optischen Glasschutz erreicht unsere lineare Skala die Staub- und Wasserdichtigkeitsklasse IP54. Sie verhindert Staubansammlungen und schützt vor Spritzern aus allen Richtungen. Das 3 m lange Signalkabel ist mit einem 9-poligen Datenstecker ausgestattet und verfügt über mehrere Schichten abgeschirmter Stahldrähte und ein weiches Metallgehäuse, das für hervorragende Wasserdichtigkeit und Störfestigkeit sorgt.

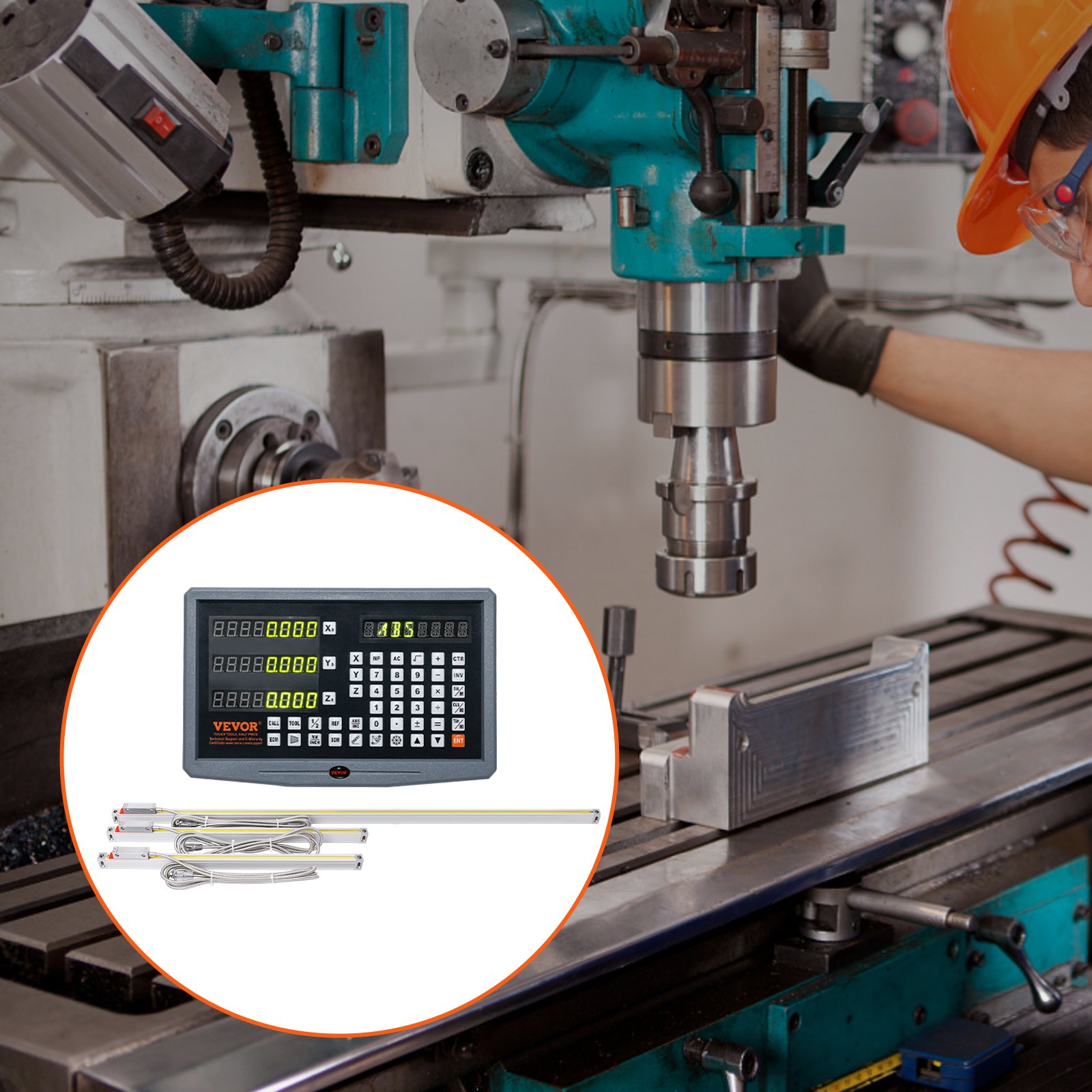

  • Vertikale oder horizontale Installation: Unsere lineare Skala ist sowohl für die vertikale als auch horizontale Installation an verschiedenen Werkzeugmaschinen, einschließlich Schneide- und Bohrmaschinen, ausgelegt. Achten Sie bei der Installation der Skala darauf, dass die Höhenrichtung parallel zur Montagefläche der Werkbank mit einer Toleranz von weniger als 0,1 mm verläuft. Bitte beachten Sie, dass bei der Installation auf unbearbeiteten Oberflächen zur Stabilisierung Unterlegscheiben an der Rückseite der Skala angebracht werden müssen. Ihre präzise Einrichtung wird zum Kinderspiel.

Häufig Zusammen Gekauft

Kunde hat auch gekauft

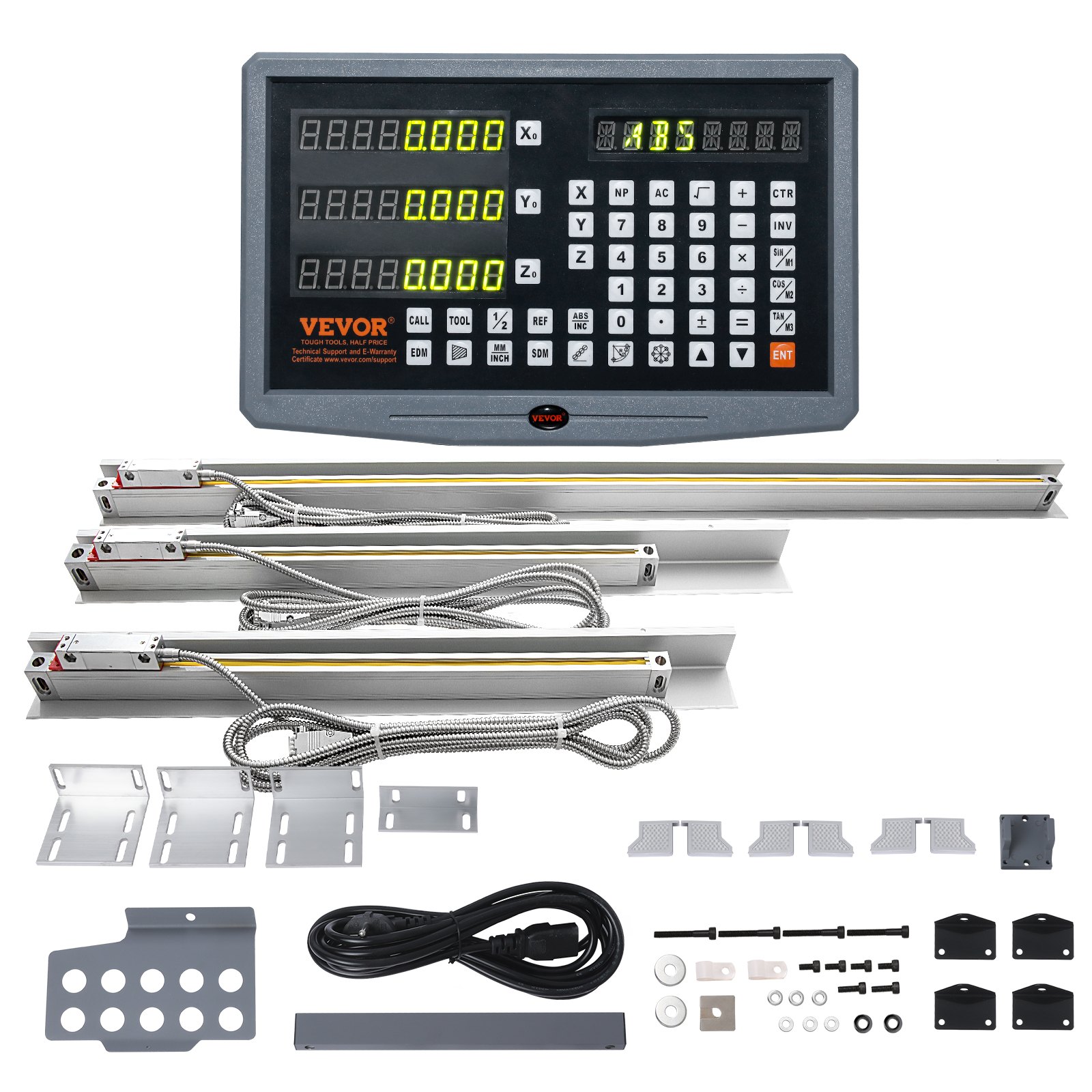

VEVOR Digitalanzeige 400/450/950mm Linearskala 3-Achsen-DRO-Display-Kit
3-Achsen-Linearmaßstab-Set
Unser 3-achsiger Linearmaßstabsatz ermöglicht volldimensionale Messungen komplexer Werkstücke mit einer Auflösung von 10 μm. Er verfügt über ein schnell reagierendes Display für genaue Daten und 3 Verfahrlängen von 400 mm, 450 mm und 950 mm. Präzision in der 3D-Bearbeitung.
Wählen Sie aus 3 Verfahrlängen: 400 mm, 450 mm, 950 mm. Wenn Ihre Anforderungen über Längenmessungen an Werkzeugmaschinen hinausgehen und auch komplexe Aufgaben wie Bogenschneidefunktionen und Schräglinienbohrungen umfassen, ist unser Linearmaßstabssatz genau das Richtige für Sie.
Unser Anzeigebildschirm vereinfacht die Bedienung mit Funktionen wie der ARC-Schneidfunktion und dem Umfangsbohren, wobei die Ruhefunktion sicherstellen, dass Ihre Einstellungen und Daten auch dann erhalten bleiben, wenn Sie Ihre Arbeitsumgebung verlassen oder ein Stromausfall auftritt.
Unsere Gitter-Linearskala ist der Inbegriff von Messpräzision. Mit einer Auflösung von 5 μm, blitzschneller Reaktion und Echtzeitdatenanzeige auf dem Bildschirm erreicht sie erstaunlich geringe Fehler von nur ±15 μm (0,0006 Zoll). Erleben Sie Präzision wie nie zuvor.
Unsere lineare Waage verfügt über ein umfassendes staub- und wasserdichtes Design. Im Gegensatz zu gewöhnlichen einschichtigen Dichtungen verfügt unsere lineare Waage über eine optimierte zweischichtige Dichtung, die ihre Widerstandsfähigkeit gegen äußere Einflüsse erhöht.

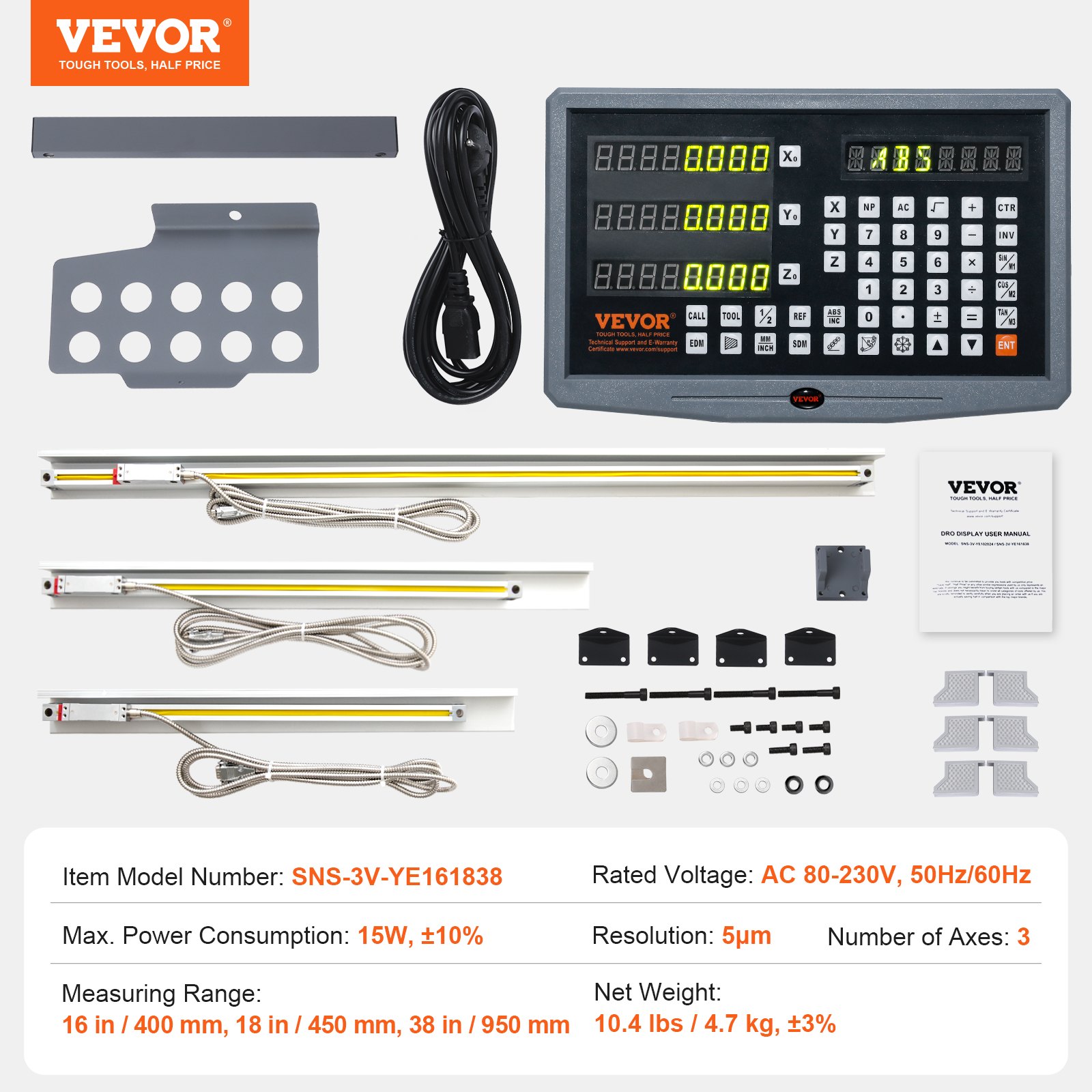

Spezifikation

Artikelmodellnummer
SNS-3V-YE161838
Nennspannung
AC 80-230 V, 50 Hz / 60 Hz
Max. Stromverbrauch
15 W, ±10 %
Auflösung
5 μm
Anzahl der Achsen
3
Messbereich
16 Zoll / 400 mm, 18 Zoll / 450 mm, 38 Zoll / 950 mm
Nettogewicht
10,4 lbs / 4,7 kg, ±3 %
Fragen und Antworten
Typische Fragen, die zu Produkten gestellt werden: Ist das Produkt haltbar? ...

Kundenbewertungen

Bewertungen nach Funktionen

  • 4.9
  • 4.6
  • 4.7
  • 4.7
  • Mehr anzeigen weniger anzeigen
14 Bewertungen
Filter löschen
Ronald Tetzlaff Ronald Tetzlaff
Retired
Items was well packed and delivery was fairly fast. DRO setup was easy and product works great, had to shorten one of the linear scales and all went well.
Derrick Derrick
Fabricator
This was used to replace a DRO that no longer worked on my mill and it was easy to adapt to mine. Just drilled and tapped new holes in the casting using and indicator to keep each scale straight to its axis.
Bob Bob
Home Hobbyist
Good price and works really great. Takes a little time for instillation but it turned out really well. The only thing they need to let you know is that you don't need to order the scale sizes that they offer as a package. They have a lot of different scales sizes you can order separately that would fit your particular machine without cutting scales to fit. That would have saved me from cutting scales to size. Need some sales representation to talk to before ordering. But mine turned out well and works great.
Jon Jon
Owner
Very quick delivery, quality looks good. Happy with purchase. Have not had the time to install as of yet, but look forward to using it. Positive transaction.
Ranged Ranged
Good DRO, Great Price
A great price on a DRO kit that includes 3 scales. Saved money by getting this kit for my PM-30'ish mill, and cutting the scales to fit, Actually, I only needed to cut the X-axes scale (cut down from the 750mm scale). Installation instructions leave a lot to be desired, but the operators manual for the DRO is very detailed. All the mounting hardware is included, but not very versatile. I ended up 3D printing brackets and spacers for a "better" fit on the scales. Build quality... no complaints. Display is large and clear, buttons are easy to read and use. Comes with a clear cover for the DRO. Powered from 110v outlet. Seems accurate for what I use it for (hobbyist). Although it could be much more accurate than what I am capable of measuring. On cutting scales, there seems to be two different methods out there. One where you take one end off the scale and cut the extrusion, glass and all. The other where you disassemble the scale, remove the glass and cut it separate. I used the latter method and had no problems. Although I did break a tap on one of the ridiculously small end cap screws. If I did it again, I would probably just epoxy the endcap back in place.
Wonka Wonka
Good scales for the money
Purchased 170mm, 320mm and 520mm scales. Accurate enough for the typical hobbyist. Nicely extruded cover for the scales to protect from fluids, bet the included mounting hardware is nothing special.
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I’m inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
Non Stop Horizon Non Stop Horizon
A little fussy to set up, but works great
Installed in an afternoon. Most of the supplied hardware was of no use, but a few bucks at the hardware store and I was off to the races.As others have mentioned, the manual is almost useless. If you have some understanding of what a dro does, then it is good enough to fill in the blanks.Some of the buttons are abbreviated in an odd way (e.g. CTR for calculator), but it's not that big of a hurdle. Just remember that English is not this things first language.I had to set the resolution of the scales to 0.2 so they would read correctly. Out of the box it was showing 5 inches of travel per inch. That was a frightening 10 minutes, but everything checks out fine now.I haven't played with all the functions yet, but so far everything works great.
Joe Smith Joe Smith
Very impressed with this DRO
It is everything they say it is. No instructions for installation but if you are a machinist then it's no different than any other installation. The scales are glass so as always, be careful to not drop or just slap them on. You must make sure they are true and indicated to the axis. I personally like the owner's manual. It was just English and I didn't have to thumb through 5 other languages. So far the DRO works fabulously.
